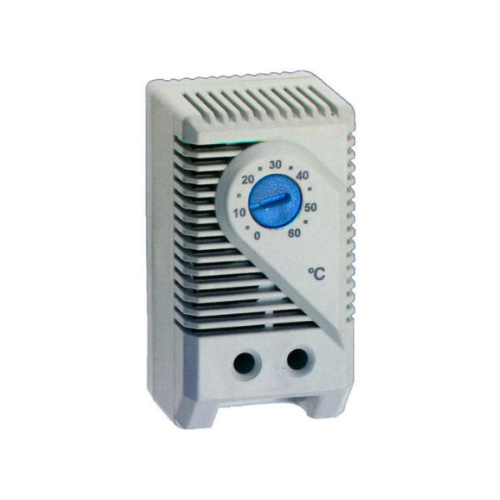

Stego 01141.9-00 KTS 001 Small Thermostat
Stego 01141.9-00 KTS 001 Small Thermostat
SKU:01141.9-00
Regular price
$17.48 USD
Regular price
$0.00 USD
Sale price
$17.48 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Characteristics
Stego KTS 001 Small Thermostat 01141.9-00
Thermostat closes on temperature rise- for regulating filter fans and heat exchangers or for switching signal devices. Comes with blue temperature dial.
Stego KTS 001 Small Compact Thermostat 01141.9-00 Characteristics:
• Compact design
• Wide adjustment range
• DIN rail mountable
Stego KTS 001 Small Compact Thermostat 01141.9-00 Technical Data:
• Switching difference: 12.6 deg F +/- 7 deg F tolerance (7 K +/- 4 K)
• Sensor element: thermostatic bimetal
• Contact type: snap-action contact
• Service life: > 100,000 cycles
• Max. switching capacity: 12 A resistive / 2A inductive @ AC 120 V, 10 A resistive / 2 A inductive @ AC 250 V, DC 30 W (DC 24-72 V)
• Max. inrush current: AC 16 A for 10 sec.
• Connection: 2-pole terminal, clamping torque 0.5 Nm max.: solid wire - AWG mac. (2.5mm^2), stranded wire^1 - AWG 16 mac. (1.5 mm^2)
• Mounting: clip for 35 mm DIN rail, EN 60715
• Mounting position: vertical
• Operating / Storage temperature: -49 to +176 deg F (-45 to +80 deg C)
• Operating / Storage humidity: max. 95 %RH (non-condensing)
• Protection type: IP20
Thermostat closes on temperature rise- for regulating filter fans and heat exchangers or for switching signal devices. Comes with blue temperature dial.
Stego KTS 001 Small Compact Thermostat 01141.9-00 Characteristics:
• Compact design
• Wide adjustment range
• DIN rail mountable
Stego KTS 001 Small Compact Thermostat 01141.9-00 Technical Data:
• Switching difference: 12.6 deg F +/- 7 deg F tolerance (7 K +/- 4 K)
• Sensor element: thermostatic bimetal
• Contact type: snap-action contact
• Service life: > 100,000 cycles
• Max. switching capacity: 12 A resistive / 2A inductive @ AC 120 V, 10 A resistive / 2 A inductive @ AC 250 V, DC 30 W (DC 24-72 V)
• Max. inrush current: AC 16 A for 10 sec.
• Connection: 2-pole terminal, clamping torque 0.5 Nm max.: solid wire - AWG mac. (2.5mm^2), stranded wire^1 - AWG 16 mac. (1.5 mm^2)
• Mounting: clip for 35 mm DIN rail, EN 60715
• Mounting position: vertical
• Operating / Storage temperature: -49 to +176 deg F (-45 to +80 deg C)
• Operating / Storage humidity: max. 95 %RH (non-condensing)
• Protection type: IP20
