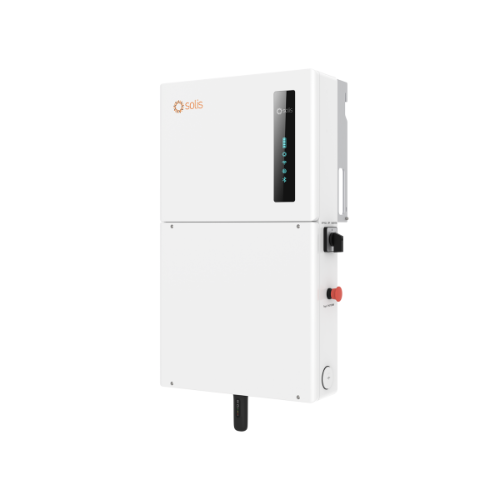

Solis 10kW S6 HV Single-Phase Hybrid Inverter with Tigo Transmitter

*This US version includes a Tigo MLRSD Transmitter; however, APST (APS MLRSD Transmitter) or ENT (Enteligent MLRSD Transmitter) can be substituted upon request. For more information, please contact info@renvu.com.

The S6 (Series 6) hybrid energy storage inverter is the latest Solis US model certified to IEEE 1547-2018, UL 1741 SA & SB, and SunSpec Modbus, providing economical zero-carbon power from an all-weather (NEMA 4X / IP 66) high-efficiency PV string inverter. This new PV / Battery inverter can be dc-coupled to a variety of certified high-voltage Lithium batteries. The S6 hybrid is a grid-forming inverter that supports the latest large PV modules with high current (16 amp) dc inputs at each MPPT.

• Four MPPTs allows for versatile PV array design
• UL 1741 SB certified, California Rule 21 compliant
• Maximum PV input current up to 16A per string
• High DC:AC ratio of 1.6 for more PV power capacity
• Transfer time is < 10ms for all backed up loads
• SunSpec modbus certified with the latest SunSpec models
• Provides split-phase backup power without an external ATR
• Multiple working modes to meet different use case scenarios
• Third-party tested and validated for product reliability
• Can be used for both whole-home and dedicated loads backup systems
• DC to DC battery charging for optimal use of PV generated energy
• Reverse DC polarity protection and software-based AFCI detection
• Offers all of the smart inverter functions detailed in IEEE 1547-2018
• Solis app allows for remote system configuration and firmware upgrading
• Generates up to 50A/11.4kW of continuous backup power with just one inverter
• Capable of frequency-watt control for interoperability with other smart devices
• NEC 2017 compliant with multiple integrated PLC transmitter options available
• Fanless design using convection cooling for lower failure rate and complexity
• Utilizes an energy management system that maximizes efficiency and offers multiple operating modes
• UL 9540 certified with multiple battery brands to provide up to 150 kWh of storage capacity per inverter
• Supports generator interconnection and allows the generator to function as the grid source if utility power is lost
