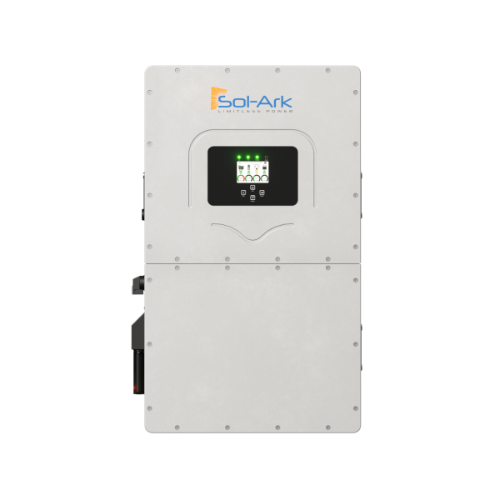

Sol-Ark 60K HV All-In-One Stackable 480V 3-Phase Hybrid Inverter

Sol-Ark 60K-3P-480V-N Hybrid Solar Battery System
Especially designed for Commercial / Industrial Customers

• French cleat for easy installation
• x2 built-in solar array disconnect
• Remote WiFi / Ethernet and local monitoring
• Outdoor rated NEMA 3R

78kW Solar Input Power

• x4 built-in MPPT for Max DC 1,000V @ self-limiting 36A
• Max AC coupled solar input of 120,000W
• Max combined solar input of 78kW DC + 60kW AC

60kW Output Power Off-Grid

• Continuous AC Power of 60,000 W
• Max grid sell output of 132,000 W with DC + AC coupling
• Supports 277/480V 3-Phase connections

Battery Agnostic

• Only supports li-ion batteries with nominal VDC > 300V
• Dual 50A inputs with individual BMS connections
• 100A of continuous battery charging and discharging
• Closed loop communications w/ our battery partners

140kW Generator Compatibility

• Supports 480V generators on GRID breaker
• Recommend up to 140kW generators on GEN breaker
• Standby generator connection for whole-building  backup
• Two wire for automatic generator start
