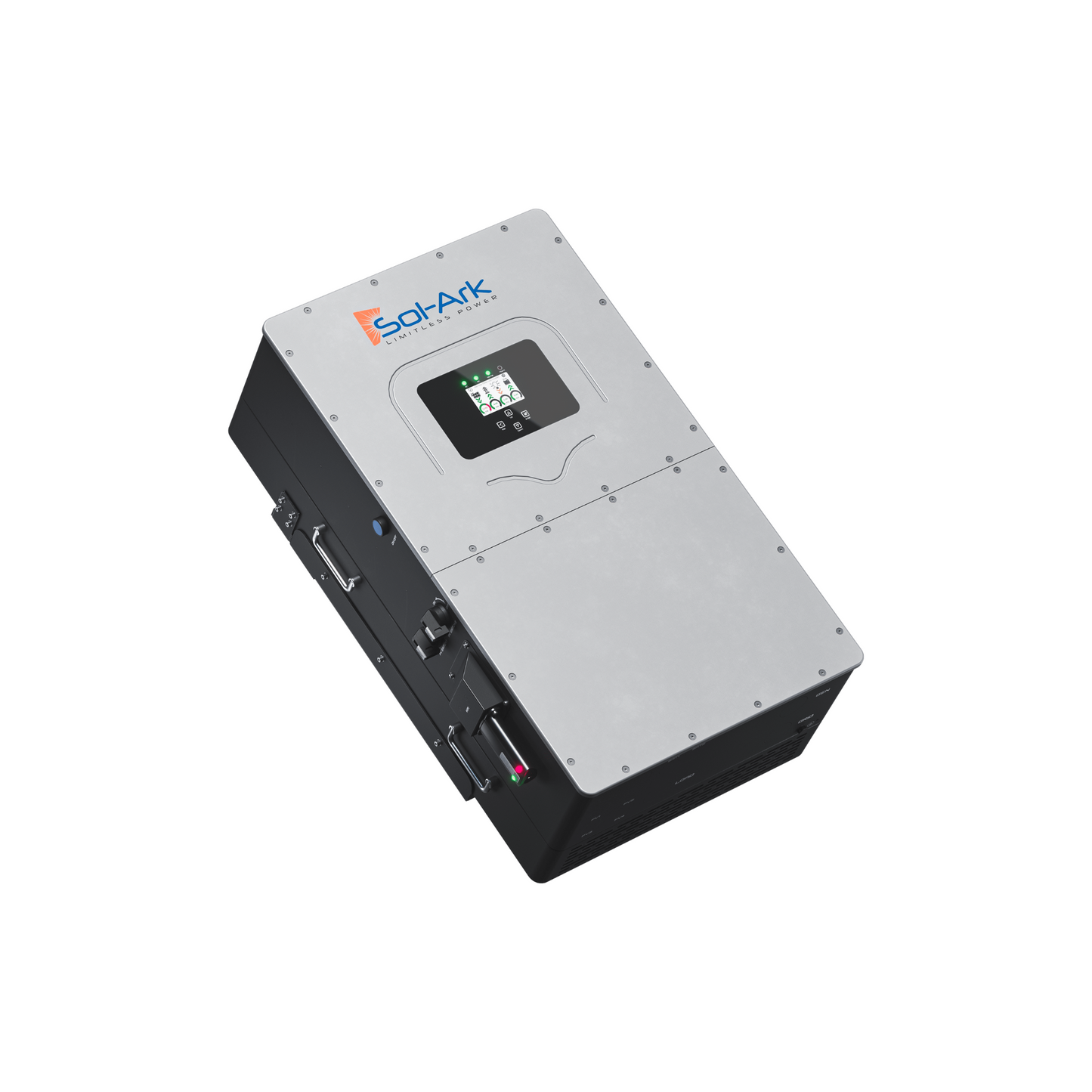

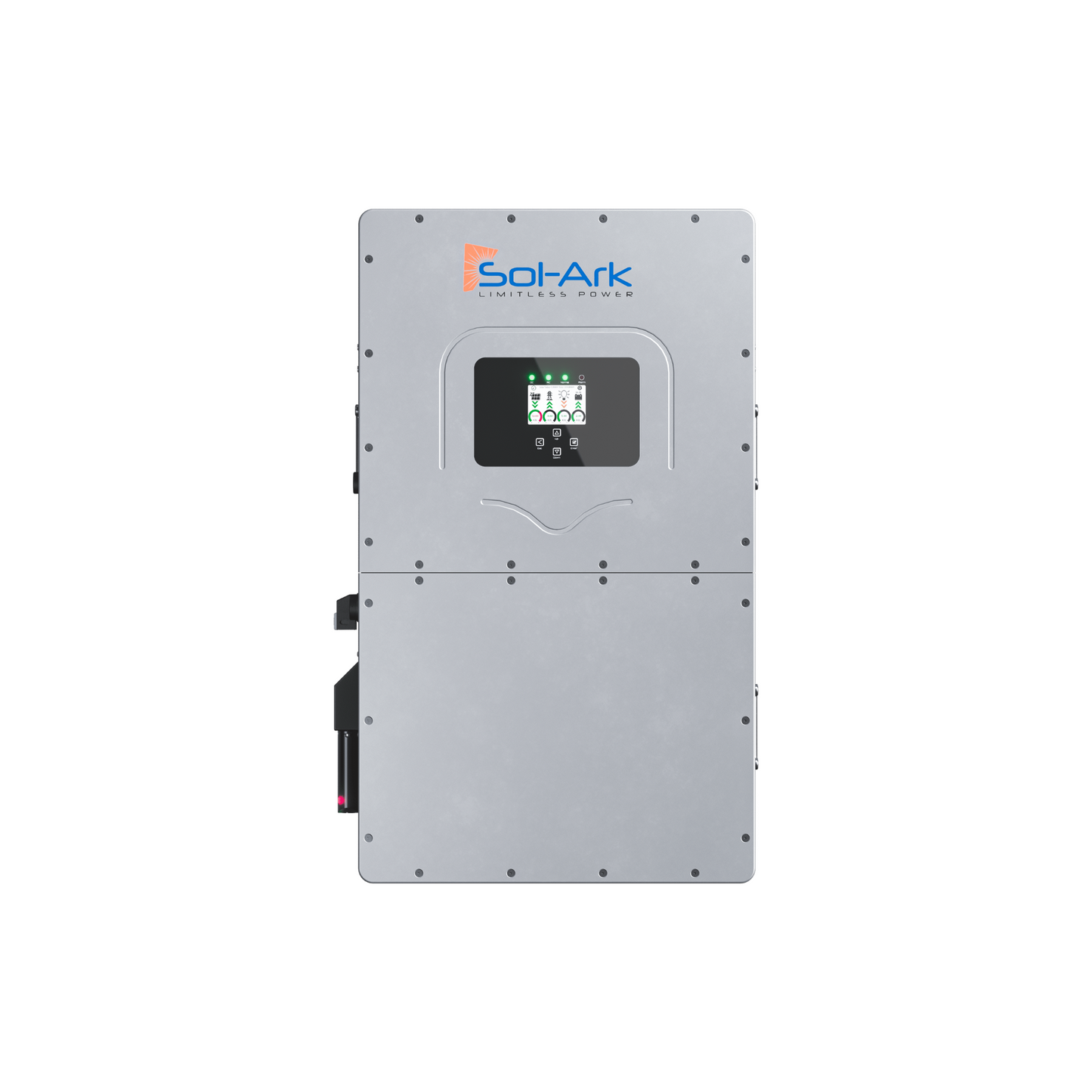

Sol-Ark 30K HV All-In-One Stackable 208V 3-Phase Hybrid Inverter

Sol-Ark 30K-3P-208V-N Hybrid Solar Battery System
Especially designed for Larger Residential Customers and Light Commercial /Industrial

• French cleat for easy installation
• x2 built-in solar array disconnect
• Remote WiFi / Ethernet and local monitoring
• Outdoor rated NEMA 3R

39kW Solar Input Power

• x4 built-in MPPT for Max DC coupled power of 39,000W
• Max AC coupled solar input of 54,000W
• Max combined solar input of 39kW DC + 54kW AC

30kW Output Power Off-Grid

• Continuous AC Power of 30kW with PV
• Max grid sell output of 58.8kW
• Supports 208V connections

Battery Agnostic

• Supports li-ion battery chemistries
• High voltage battery nominal 400V
• 100A continuous batt charging output
• closed loop communication w/ most high-end lithium batteries

Full Generator Compatibility

• Supports 208V generators on GRID breaker
• Up to 28.8kW generators on GEN breaker
• Standby generator connection for whole-home backup
• Two wire for automatic generator start only
