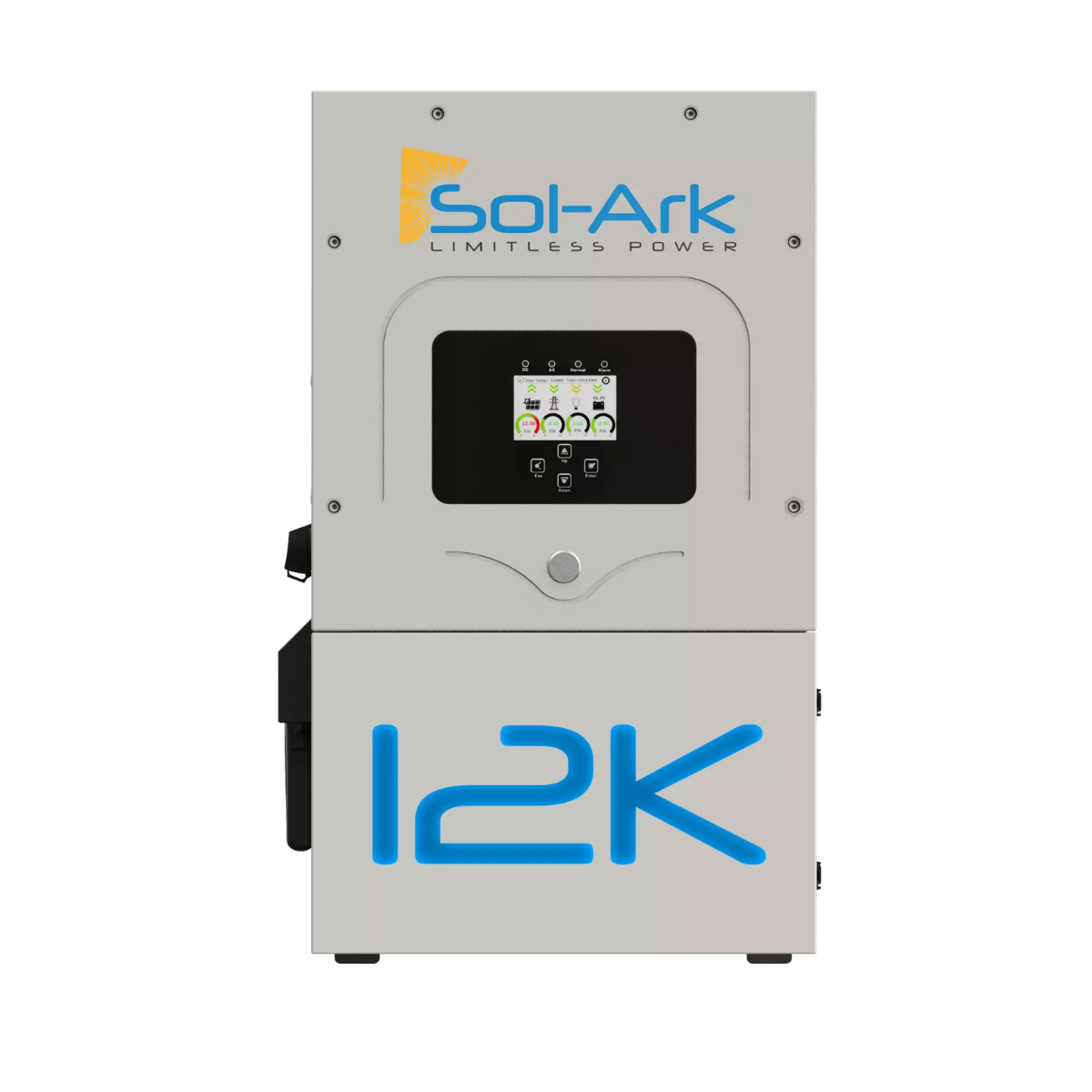

Sol-Ark 12K 48V All-in-One Stackable Hybrid Inverter with Solar Flare & EMP Hardening

Stackable, no glitch, all-in-one hybrid inverter. Parallel stacking, grid sell, meter zero, time of use, smart load, AC coupling, peak shaving, 16kW peak power. Highly accelerated life testing... proven to last well beyond the standard 10-year warranty. Engineered, tested, serviced in USA. No glitch switch (4ms)... fastest transfer time in the industry. Free remote monitoring/programming.

Inside the 12K box:
• Outdoor rated Manual
• WiFi Plug with screws
• WiFi Power
• Ethernet Cable
• Limiter Sensors (sm)-2
• Toroid
• Allen Key
• Mounting Bracket
• Battery Temp Sensor
• Indoor 12K Manual

Sol-Ark 12K 120/240/208V 48V Hybrid All-in-One Inverter Features:
• Two built-in 500V charge controllers
• 1-4 PV strings
• Battery disconnect
• 48V battery input
• Battery temp sensor
• Auto-generator start
• Rapid shut down signal
• Current sensors included
• Battery communication
• PV disconnect
• Wiring knockouts & WiFis
• 50A Breakers: AC in/out, AC load out, AC Gen in/smart load out

Solar Characteristics:
• Max Allowed PV Power: 6500W + 6500W = 13000W
• Max PV power delivered to battery & AC outputs: 12,000W
• Max DC voltage (Voc): 500V @ 18A, 450V @ 20A
• MPPT voltage range: 150-425V
• Starting voltage: 125V
• Number of MPPT: 2
• Max Solar Strings per MPPT: 2
• Max DC current per MPPT (self limiting): 20A
• Max AC Coupled Input (Micro/String Inverters): 9,600W

AC Output Characteristics:
• Connections: 120/240/208V split phase
• Continuous AC power to Grid (On Grid): 9,000W 37.5A L-L (240V)
• Continuous AC power to Grid (Off Grid): 9,000W 37.5A L-L (240V)
• Surge AC power 10sec: 16,000VA L-L (240V)
• Surge AC power 100ms: 25,000VA L-L (240V)
• Parallel stacking: Yes
• Frequency: 60/50Hz
• Continuous AC power with Grid or Generator: 15,120W 563A L-L (240V)
• CEC Efficiency: 96.5% (Peak 97.5%)
• Idle Consumption typical – no load: 60W
• Sell back power modes: Limited to Household or Fully Grid-Tied
• Design (DC to AC): Transformerless DC
• Response Time (Grid-Tied to Off-Grid): 4ms
• Power Factor: +/-0.9 - 1.0

Battery (optional) Characteristics:
• Type: Lead-Acid or Li-Ion
• Nominal DC Input: 48V
• Capacity: 50 – 9900Ah
• Voltage Range: 43.0 – 63.0V
• Continuous Battery charging output: 185A
• Charging curve: 3-stage w/ equalization
• Grid to Battery Charging Efficiency: 96.0%
• External temperature sensor: included
• Current shunt for accurate % SOC: integrated
• External Generator Start based on voltage or % SOC: integrated
• Communication to Lithium battery: CanBus & RS485

General Characteristics:
• NEMA-3R rated
• Ambient Temperature (4 variable speed fans): -25 to 55C, >45C derating
• Installation style: wall-mounted
• Wi-Fi & LAN Communication: included
• Standard Warranty (verified by HALT testing): 10 years

Easy Install:

The 12K INVERTER comes with everything you need to install it. Nicely packaged for added efficiency.

Fleet Management:

With Sol-Ark’s remote access features and app you are never out of touch to quickly repair or adjust any system without being on site.

AC/DC Coupling

Supports simultaneous DC and AC coupling up to a combined 13kW of PV. Boosts PV energy 10-20% without increasing PV array size and reduces storage inverter costs up to 30%.

Warranty and Reliability

Comes with their award winning iron clad warranty and their 7 day a week live engineering support to assist you in all your needs.

Indirect Lightning, Solar Flare & EMP Hardening for Sol-Ark system.

Each EMP kit consists of the following three things:
1. One Box containing the inverter (already modified internally) and associated parts.
2. Large Suppressors: 40 count
3. Small Suppressors: 20 count

If the customer desires EMP battery backup – it's recommend
• Sol-Ark PCC230 (230Ah) batteries
• ANY 48V lead-acid / AGM battery

EMP hardening Sol-Ark inverters is an additional proprietary step in their manufacturing and production process. It is NOT a separate component. EMP hardening must be ordered when placing purchase orders.

Please make sure TWO(2) boxes are included:
• ONE inverter box
• ONE box containing suppressors

Important for the protection: Please be sure to check in with Sol-Ark’s Engineering Support when installing EMP hardened systems to ensure the suppressors are installed correctly per installation manual.

All EMP hardened systems come with suppressors!  EMP hardening the inverter alone will not protect the overall solar plus storage system setup, the suppressors must be installed!
