S-5! S-5-H Clamp for Standing Seam with Horizontal Seam
S-5! S-5-H Clamp for Standing Seam with Horizontal Seam
SKU:S-5-H
Regular price
$13.16 USD
Regular price
$0.00 USD
Sale price
$13.16 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Characteristics

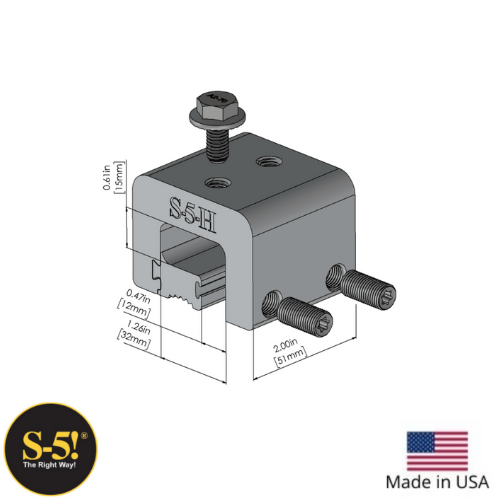

S-5! S-5-H Clamp for Standing Seam with Horizontal Seam
The S-5-H clamp was specifically developed to securely and cost -effectively accommodate metal roof panels with a horizontal seam. The S-5-H is unique in that it allows for attachment to a horizontal seam on the vertical leg of the seam. The clamp's two-piece design allows it to be installed anywhere along the length of the rib, making installation fast and easy! Just place the clamp on the seam, slide the insert piece into place, and tighten the setscrews. After the clamp is installed, affix ancillary items using the top stainless steel bolt provided. The S-5-H is perfect for use with S-5! ColorGard® snow retention system and other heavy-duty applications
Key Features:• For standing seam panels with horizontal seam orientation (single-folded)
• Accommodates roof panels with a horizontal seam not fully closed
• Two-piece design allows for easy attachment anywhere along seam length
• Insert allows clamp to fit over wider horizontal seams up to .75- (19 mm)
Characteristics:
• Applications: snow retention and other heavy-duty applications
• Includes: Two T-30 Torx round-point setscrews and one M8 bolt
The S-5-H clamp was specifically developed to securely and cost -effectively accommodate metal roof panels with a horizontal seam. The S-5-H is unique in that it allows for attachment to a horizontal seam on the vertical leg of the seam. The clamp's two-piece design allows it to be installed anywhere along the length of the rib, making installation fast and easy! Just place the clamp on the seam, slide the insert piece into place, and tighten the setscrews. After the clamp is installed, affix ancillary items using the top stainless steel bolt provided. The S-5-H is perfect for use with S-5! ColorGard® snow retention system and other heavy-duty applications
Key Features:• For standing seam panels with horizontal seam orientation (single-folded)
• Accommodates roof panels with a horizontal seam not fully closed
• Two-piece design allows for easy attachment anywhere along seam length
• Insert allows clamp to fit over wider horizontal seams up to .75- (19 mm)
Characteristics:
• Applications: snow retention and other heavy-duty applications
• Includes: Two T-30 Torx round-point setscrews and one M8 bolt
