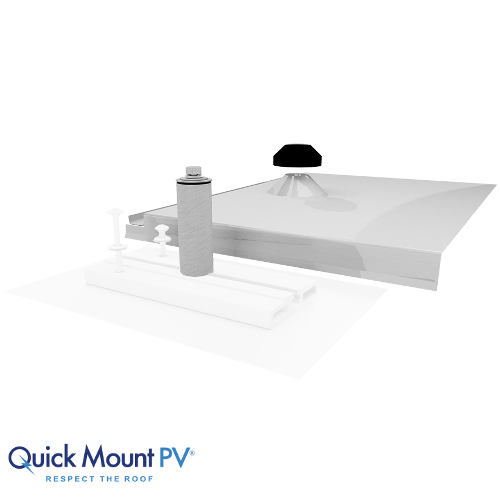

QUICKMOUNT Tile Replacement Mount Flat-tile flashing

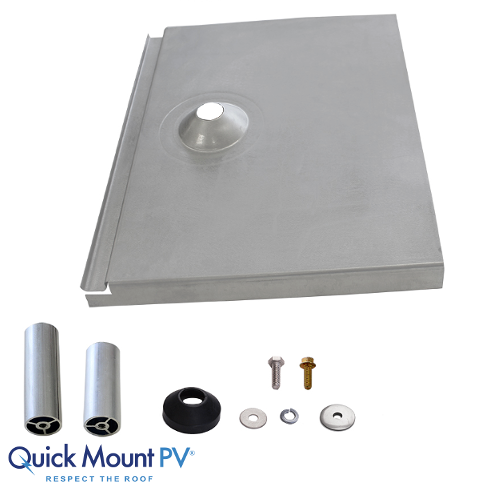

QUICKMOUNT Tile Replacement Mount Flat-tile flashing, Mill Finish, QMTR-F3.25 Qt.1 For use with Base Mount QMTR-BM Kit Includes: Flat tile flashing & 3¼ post, aluminum 1 serrated flange hex-head cap screw EPDM-bonded stainless steel sealing washer, 5/16 x 1¼ EPDM Counter flashing collar 5/16 x 1 fender washer 5/16 split-lock washer 1 hex-head cap screw

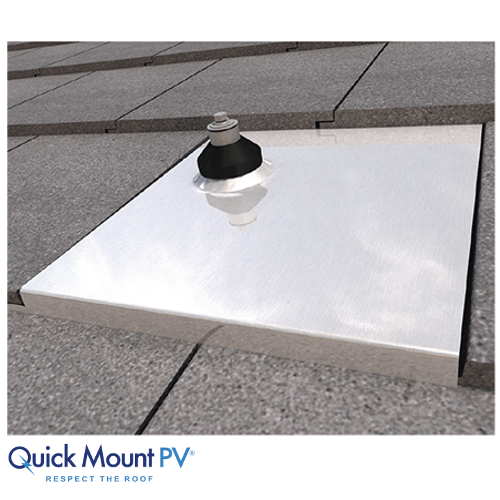

The Tile Replacement Mount provides a fast and easy way to install solar on tile roofs while protecting against water intrusion. Simply remove the tile and replace it with the Tile Replacement Mount. Works with all standard curved and flat tile roofs, and all standard rail-based racking systems. Flashed at both the deck and top levels, the Tile Replacement Mount is fully engineered to meet code requirements and industry best practices. The Tile Replacement Mount features our patented Elevated Water Seal technology for optimal waterproofing. Base mount sold separately from flashing and post.
