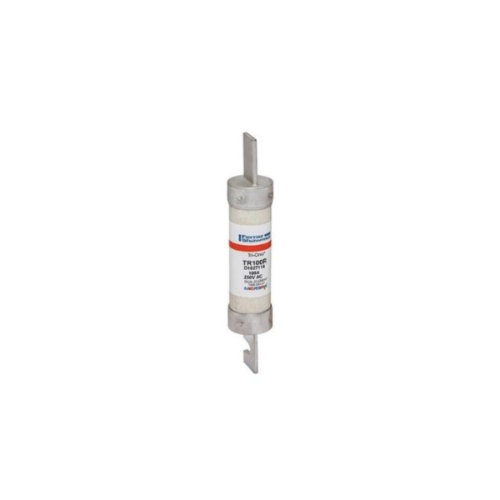

Mersen TR100R Fuse,Square D AC Disconnect,100A 250VAC

Mersen TR100R Fuse,Square D AC Disconnect,100A 250VAC

TR100R

$28.64 USD
$0.00 USD $28.64 USD
Sale Sold out
Shipping calculated at checkout.

View full details

Characteristics

Mersen TR100R Fuse for Square D, AC Disconnect, TR, 100A, 250VAC

With advanced material technology added to the
existing Mersen-Ferraz product, the TR and TRS current-limiting
time delay fuses are engineered for overcurrent
protection of motors and transformers, service
entrance equipment, feeder and branch circuits.
Tri-Onic fuse's proven time-delay characteristic
safely handles harmless starting currents and
inrush currents associated with today's motors
and transformers. Now available with optional
SmartSpot® blown fuse indication technology.

Highlights:
  • Time Delay
  • Current Limiting
  • AC & DC Rated

Features and Benefits:
  • Optional Solid State SmartSpot Indicator
  • Time delay for motor start-ups and transformer inrush
    currents without nuisance opening
  • Current limiting for low peak let-thru current
  • Rejection-style design prevents replacement errors
  • (when used with recommended fuse blocks)
  • Easy-to-read label for quick recognition
  • and replacement
  • Metal-embossed date and catalog number for
  • traceability and lasting identification
  • Fiberglass body provides dimensional stability in
  • harsh industrial settings
  • High-grade silica filler ensures fast arc quenching and
    high current limitation
TR Ratings:
AC:
  • 1/10 to 600A, 250VAC, 200kA I.R.
DC:
  • 1/10 to 2-8/10A, 250VDC, 20kA I.R.
  • 3 to 30A, 160VDC, 20kA I.R.
  • 35 to 400A, 250VDC, 20kA I.R.
  • 450 to 600A, 160VDC, 20kA I.R.
Approvals:
  • UL Listed to Standard 248-12 File E2137
  • CSA Certified to Standard C22.2 No. 248.12
  • DC Listed to UL Standard 248 TRS only


TR-R - Class RK5 - Time-Delay

Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.
