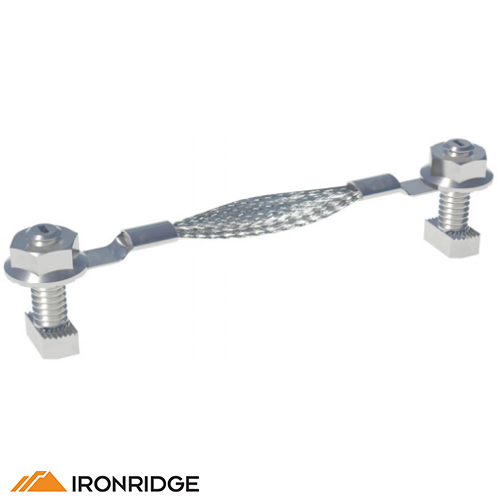

IronRidge Grounding (Bonding) Strap Expansion Joint (Qt.1)
IronRidge Grounding (Bonding) Strap Expansion Joint (Qt.1)
SKU:RS-GDXP-001
Regular price
$7.62 USD
Regular price
$0.00 USD
Sale price
$7.62 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Share
Characteristics
IronRidge Grounding (Bonding) Strap Expansion Joint (Qt.1)
IronRidge Grounding (Bonding) Strap Expansion Joint (Qt.1)
A Bonding Strap Expansion Joint is required for thermal expansion for rows exceeding 100 feet of rail. The kit comes with a bonding strap and hardware to secure the strap to the top slot.
RS-GDXP-001
IronRidge Grounding Strap Expansion Joint
Grounding Strap Expansion Joints are required for thermal expansion of rows exceeding 100 feet of rail. Insert Internal Splice into first rail and secure with screw. Assemble and secure Grounding Strap 3/8 from rail end. Slide second rail over Internal Splice leaving 1 gap between rails. Attach other end of Grounding Strap with hardware, and torque hex nuts to 84 in-lbs.
Second Internal Splice screw is not used with Expansion Joints.
Do not install module over top of expansion joint location.
