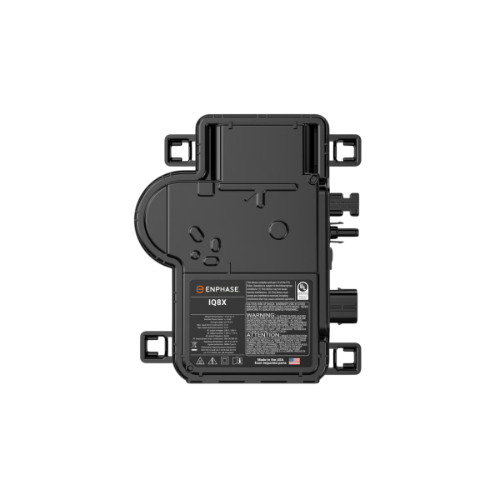

The newest IQ8 Series Microinverters are the industry’s first microgrid-forming, software-defined microinverters with split-phase power conversion capability to convert DC power to AC power efficiently. IQ8X Microinverter is the latest addition to this family, designed to support PV modules with high output DC voltage and cell counts, such as 80-halfcut cells, 88-half-cut cells, and 96-cells.
Details
Lightweight and compact with plug-and-play connectors
Power line communication (PLC) between components
Faster installation with simple two-wire cabling
Produces power even when the grid is down*
More than one million cumulative hours of testing
Class II double-insulated enclosure
Complies with the latest advanced grid support
Remote automatic updates for the latest grid requirements
Configurable to support a wide range of grid profiles
Meets CA Rule 21 (UL 1741-SA) and IEEE 1547:2018 (UL 1741-SB)
*Meets UL 1741 only when installed with IQ System Controller 2 or 3
Technical specifications
Peak output power: 384 VA @ 240 Vac
Input power: 320–540 W
Maximum continuous output power: 380 VA @ 240 Vac
Operating range: 25–79.5 V
Warranty IQ8 Series Microinverters redefine reliability standards with more than one million cumulative hours of power-on testing, enabling an industry-leading limited warranty of up to 25 years.
Training Enphase University certification is required to commission IQ8 Microinverters in systems with backup (Sunlight Backup, Home Essentials Backup, and Full Energy Independence). Solar Only systems with IQ8 Microinverters do not require certification.
