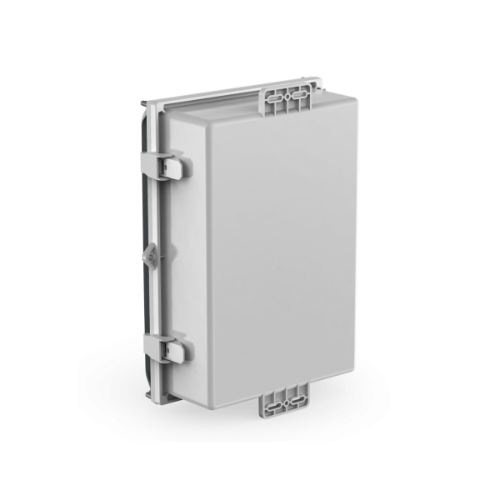

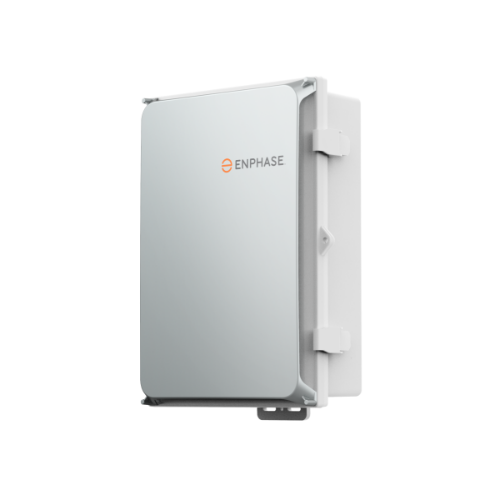

Enphase IQ Combiner 5

Enphase IQ Combiner 5

SKU:X-IQ-AM1-240-5

Regular price $686.27 USD
Regular price $0.00 USD Sale price $686.27 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Characteristics

The IQ Combiner 5 consolidates interconnection equipment into a single enclosure, and streamlines IQ Series Microinverters and IQ Gateway installation by providing a consistent, pre-wired solution for residential applications. It uses Control Cable wiring for communication and is compatible with IQ System Controller 3/3G and IQ Battery 5P.

The IQ Combiner 5, along with IQ Series Microinverters, the IQ System Controller 3/3G, and the IQ Battery 5P, provides you with a complete, grid-agnostic Enphase Energy System.

Details
Smart

  • Includes IQ Gateway for communication and control
  • Supports flexible networking: Wi-Fi, Ethernet, or cellular
  • Provides production metering (revenue grade) and consumption monitoring

Easy to install

  • Mounts to one stud with centered brackets
  • Supports bottom, back, and side conduit entry
  • Supports up to four 2-pole branch circuits for 240 VAC plug-in breakers (not included)
  • 80 A total PV branch circuits

Reliable

  • Durable NRTL-certified NEMA type 3R enclosure
  • Five-year limited warranty
  • Two years labor reimbursement program coverage included
  • UL1741 listed

Technical specifications

  • Rating: 80 A
  • System voltage: 120/240 VAC, 60 Hz
  • Eaton BR series busbar rating: 125 A
  • Maximum continuous current rating (input from PV/storage): 64 A
  • Branch circuits (solar and/or storage): Up to four 2-pole Eaton BR series distributed generation (DG) breakers only (not included)
  • Maximum total branch circuit breaker rating (input): 80 A of distributed generation/95 A with IQ Gateway breaker included
  • IQ Gateway breaker: 10 A or 15 A rating GE/Siemens/Eaton included
  • Production metering CT: 200 A solid core pre-installed and wired to IQ Gateway
  • Consumption monitoring CT (CT-200-CLAMP): A pair of 200 A clamp-style current transformers is included with the box
  • IQ Battery metering CT: 200 A clamp-style current transformer for IQ Battery metering, included with the box

Compatibility

  • IQ Series Microinverters
  • IQ Battery 5P
  • IQ System Controller 3/3G
  • Control cable

What’s in the box

  • IQ Combiner 5
  • IQ Gateway printed circuit board
  • IQ Gateway breaker
  • Production CT
  • Consumption CT
  • IQ Battery CT
  • CTRL board
