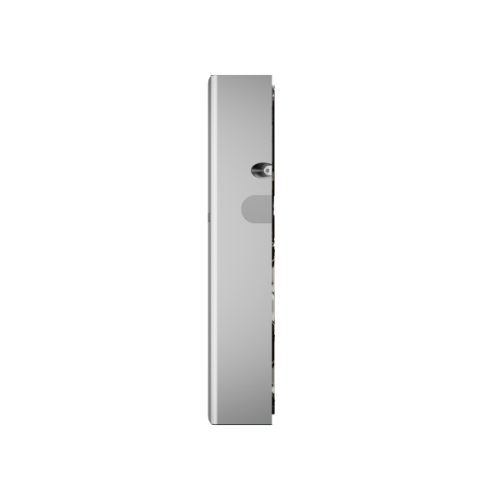

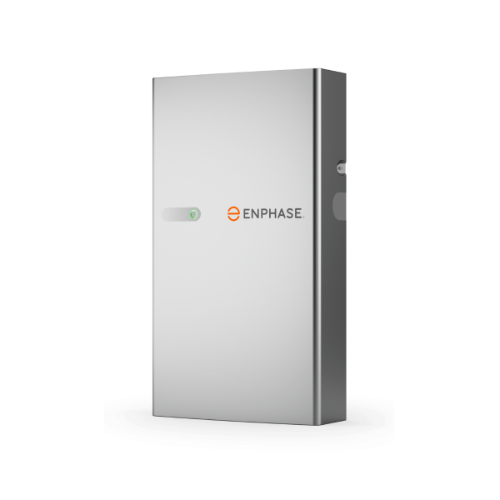

Enphase IQ Battery 5P All-In-One AC-Coupled Storage System

Enphase University certification is required to commission the IQ Battery 5P.

An all-in-one, AC-coupled storage system, the IQ Battery 5P is the most powerful Enphase battery yet.

It has a total usable energy capacity of 5.0 kWh, and features six embedded grid-forming microinverters and 3.84 kW of continuous power, as well as peak output power of 7.68 kW for 3 seconds and 6.14 kW for 10 seconds.

Easily integrating with the Enphase Energy System, the IQ Battery 5P can provide backup capability when installed with IQ System Controller 3/3G, and is supported by a 15-year limited warranty. Its modular design means installers can quickly design the right system size to meet the needs of homeowners.

Details

• Fully integrated AC battery system
• Six embedded IQ8D-BAT Microinverters
• 15-year limited warranty
• Field-replaceable components
• Stable lithium iron phosphate (LFP) chemistry for maximum safety and longevity
• Cools passively with no moving parts or fans
• Uses Control cabling for fast and consistent connection
• Quick and easy installation
• Remote software and firmware upgrades
• Grid-forming capability for backup operation
• Offers homeowners remote monitoring and control from the Enphase App
• Supports backup, self-consumption, and time of use (TOU) modes

Technical specifications

• Power rating: 3.84 kW
• Energy capacity: 5.0 kWh
• Peak output power: 7.68 kW (3 seconds), 6.14 kW (10 seconds)
• DC round-trip efficiency: 96%
• AC round-trip efficiency: 90%

Compatibility

• IQ Series Microinverters
• M Series Microinverters (Only in states that have not yet adopted IEEE 1547:2018)
• IQ System Controller 3/3G
• IQ Combiner 5/5C
• Comms Kit 2
• Control cable
• Floor mount pedestal
• IQ Battery 5P lifting handles

What’s in the box

• IQ Battery 5P base unit
• IQ Battery 5P cover
• Wall mounting bracket

Warranty

• The Enphase IQ Battery 5P is covered by a 15-year limited warranty up to 6,000 cycles.
